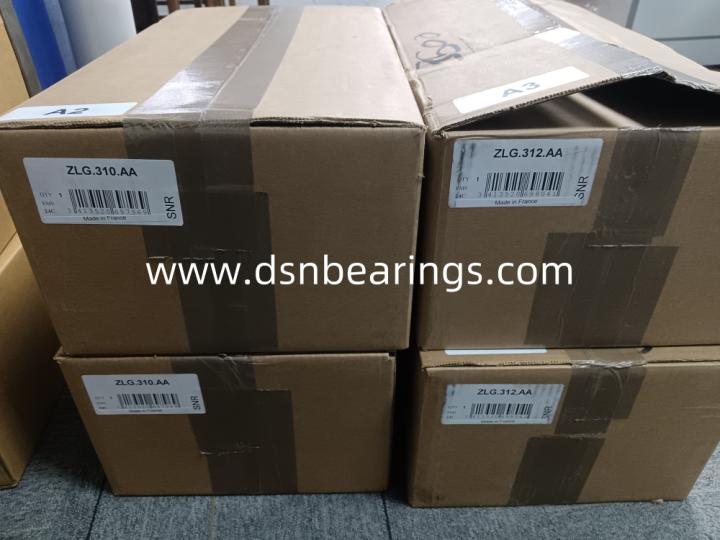

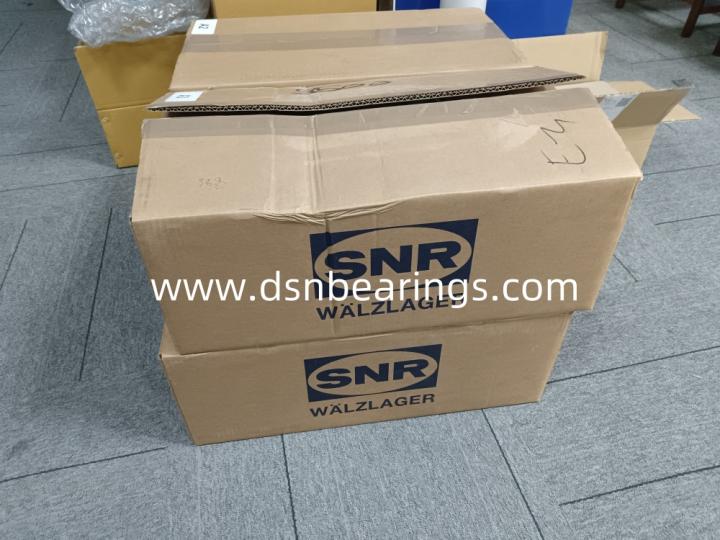

SNR ZLG.312.AA double seat bearing
Payment & Shipping Terms
| Minimum Order Quantity: | 1 pcs |
| Price: | Contact with Sales |
| Packaging Details: | SINGLE BOX PACKING - CARTON BOX PACKING - PALLETS |
| Delivery Time: | 5-7 Days After payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 100000pcs/month |
Product Description

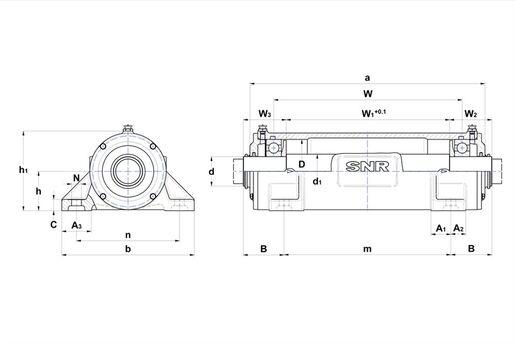

| Brand | SNR |
| d - Shaft diameter | 60 mm |
| d1 - Shaft diameter between bearings | 70 mm |
| a - Housing length | 479 mm |
| b - Housing foot width | 270 mm |
| c - Housing foot height | 23 mm |
| h - Bearing center height | 80 mm |
| h1 - Housing height | 162 mm |
| m - Mounting hole/punches distance (length) | 340 mm |
| n - Mounting hole distance (width) | 210 mm |
| N - Mounting hole diameter | 20 mm |
| B - Distance mounting hole to shaft step | 81,5 mm |
| W - Bearing distance | 384 mm |
| W1 - Central shaft length | 333 mm |
| W2 - Right shaft end length | 84 mm |
| A1 | 40 mm |
| A2 | 30 mm |
| A3 - ZLG foot width | 60 mm |
| D - Bearing seat diameter | 130 mm |
| Mass | 30 kg |
| Material of Housing | grey cast |
| Initial grease quantity | 243 cm³ |
