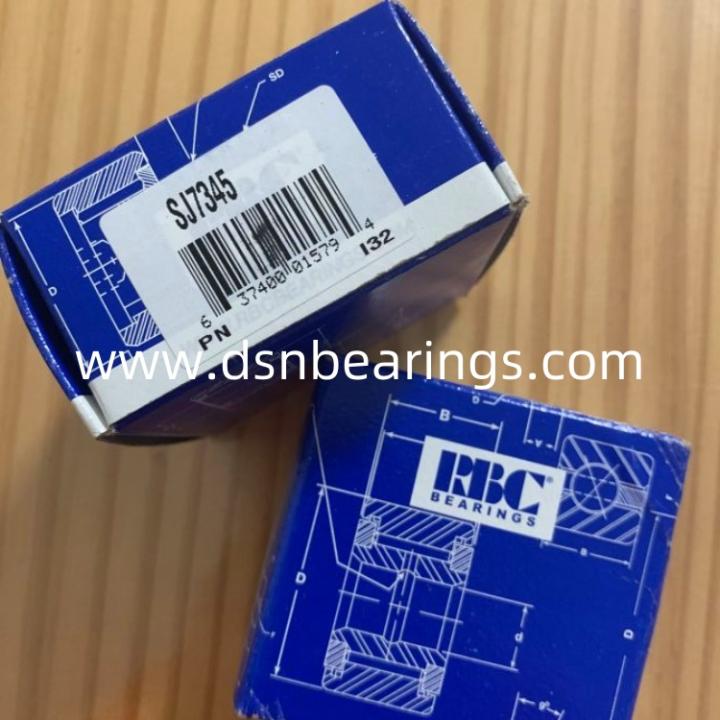

SJ7345 RBC Needle Bearing
SJ 7345
RBC SJ 7345 ; Bearings/needle roller bearings
Needle Bearing Roller Assembly with Outer Ring; 1-15/16" Bore; 2-1/2" Outside Diameter; 1-1/4" Width; Needle Roller Bearing; Open; No Self Aligning; Retainer; Single Row; No Separable; No Closed End; Relubricatable
Payment & Shipping Terms
| Minimum Order Quantity: | 1 pcs |
| Price: | Contact with Sales |
| Packaging Details: | SINGLE BOX PACKING - CARTON BOX PACKING - PALLETS |
| Delivery Time: | 5-7 Days After payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 100000pcs/month |
Product Description
| Product Name | RBC Heavy Duty Pitchlign Needle Bearing | ||
| Description | SJ7345 - RBC Heavy Duty Pitchlign Needle Bearing - 1.9375" Bore x 2.5" OD x 1.25" Width | ||
| Type | Precision Ground Heavy Duty Needle Roller Bearing | ||
| Style | Caged Needle Bearing | ||
| Inch/Metric | Inch | ||
| Inner Diameter | 1.9375" | ||
| Outer Diameter | 2.5" | ||
| Width | 1.25" | ||
| Outer Ring Width | 1.25" | ||
| Bearing Material | 52100 Bearing Quality Steel | ||
| Finish | Chrome Steel | ||
| Operating Temperature | -40 to 300 ºF | ||
| Enclosure | Open | ||
| Cage Material | Steel | ||
| Fillet Radius | 0.06" | ||
| Series | Pitchlign® | ||
| Seal Type | No Seal (Open) | ||
| Compatible Inner Ring | IR7345 | ||
| Bore Size (in) | 1.94 | ||
| Bore Size (mm) | 49.21 | ||
| Dynamic Load Rating (lbf) | 10100 | ||
| Dynamic Load Rating (N) | 44927.022 | ||
| Industry Standards/Certifications | MS 51961 | ||
| Item Name | RBC Heavy Duty Pitchlign Needle Bearing | ||
| Lubrication Type | Hole On Outer Ring | ||
| Material | 52100 Bearing Quality Steel | ||
| Operating Temperature (Max) ºC | 148.9 | ||
| Operating Temperature (Max) ºF | 300 | ||
| Operating Temperature (Min) ºC | -40 | ||
| Operating Temperature (Min) ºF | -40 | ||
| Outside Diameter (in) | 2.50 | ||
| Outside Diameter (mm) | 63.50 | ||
| Static Load Rating (lbf) | 24100 | ||
| Static Load Rating (N) | 107202.102 | ||
| Weight (lb) | 0.54 | ||
| Bore Shape | Round | ||
| Fillet Radius/Chamfer (in) | 0.06 | ||
| Fillet Radius/Chamfer (mm) | 1.524 | ||
| Precision Rating | Not Rated | ||
| Speed (Max) (rpm) | 6900 | ||
| Total Width (in) | 1.25 | ||
| Total Width (mm) | 31.75 | ||
Suzhou DSN Bearings Limited Advantages:
Suzhou DSN Bearings Limited. We have deal with the bearing import and export business more than 20 years.
The company sells NHBB bearings,KAYDON bearings,RBC bearings,INA bearings,MCGILL bearings,RBC bearings,NTN bearings,IKO bearings,KOYO bearings,SFERAX bearings,NMB bearings,NACHI bearings,BARDEN bearings,WINKEL bearings,C-FLEX bearings and other Europe and the United States High precision bearing products.
The main brands are as follows:German brands: MYONIC, GMN, GRW, FAG INA STIEBER NADELLA BARDEN STAR,American brand: NHBB KAYDON RBC MCGILL MRC C-FLEX BARDENJapanese brand: NSK NTN NACHI IJK NMB EZO IKO THK ASAHI KOYO FYHEuropean brand: SKF SNFA RHP SNR ADR RBF ZKL NKE WIB COOPER SFERAX and so on.
MORE CHOICES:
FAQs
A: We promise to bear the following responsibilities when defective products were found:
- 1. 12 months warranty from the first day of receiving goods;
- 2. Replacements would be sent with goods of your next order;
- 3. Refund for defective products if customers require.
A: Yes, we provide ODM&OEM services to worldwide customers, we also customize OEM box and packing as your requirements.
A: MOQ is 10pcs for standardized products; for customized products, MOQ should be negotiated in advance. There is no MOQ for sample orders.
A: The lead time for sample orders is 3-5 days, for bulk orders is 5-15 days.
A: Yes we offer free samples to distributors and wholesalers, however customers should bear freight. We DO NOT offer free samples to end users.
A:
- 1. Email us the model, brand and quantity,shipping way of bearings and we will quote our best price for you;
- 2. Proforma Invoice made and sent to you as the price agreed by both parts;
- 3. Deposit Payment after confirming the PI and we arrange production;
- 4. Balance paid before shipment or after copy of Bill of Loading.
