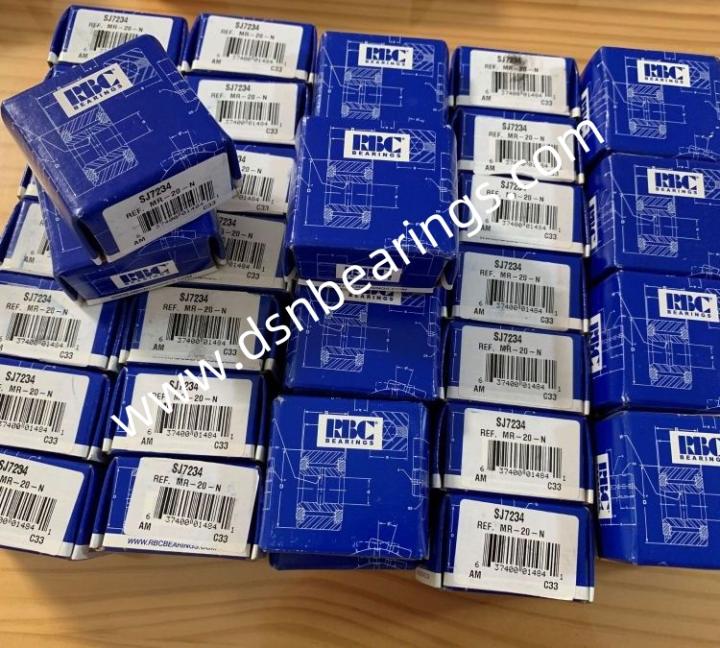

SJ7234 RBC Heavy Duty Pitchlign Needle Bearing
SJ 7234
RBC BEARINGS SJ 7234
Needle Bearing Roller Assembly with Outer Ring; 1-1/4" Bore; 1-3/4" Outside Diameter; 1" Width; Needle Roller Bearing; Open; No Self Aligning; Retainer; Single Row; No Separable; No Closed End; Relubricatable
Payment & Shipping Terms
| Minimum Order Quantity: | 1 pcs |
| Price: | Contact with Sales |
| Packaging Details: | SINGLE BOX PACKING - CARTON BOX PACKING - PALLETS |
| Delivery Time: | 5-7 Days After payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 100000pcs/month |
Product Description
| Product Name | RBC Heavy Duty Pitchlign Needle Bearing | ||
| Description | SJ7234 - RBC Heavy Duty Pitchlign Needle Bearing - 1.25" Bore x 1.75" OD x 1" Width | ||
| Type | Precision Ground Heavy Duty Needle Roller Bearing | ||
| Style | Caged Needle Bearing | ||
| Inch/Metric | Inch | ||
| Inner Diameter | 1.25" | ||
| Outer Diameter | 1.75" | ||
| Width | 1" | ||
| Outer Ring Width | 1" | ||
| Bearing Material | 52100 Bearing Quality Steel | ||
| Finish | Chrome Steel | ||
| Operating Temperature | -40 to 300 ºF | ||
| Enclosure | Open | ||
| Cage Material | Steel | ||
| Fillet Radius | 0.04" | ||
| Series | Pitchlign® | ||
| Seal Type | No Seal (Open) | ||
| Compatible Inner Ring | IR7234 | ||
| Bore Size (in) | 1.25 | ||
| Bore Size (mm) | 31.75 | ||
| Dynamic Load Rating (lbf) | 7900 | ||
| Dynamic Load Rating (N) | 35140.938 | ||
| Industry Standards/Certifications | MS 51961 | ||
| Item Name | RBC Heavy Duty Pitchlign Needle Bearing | ||
| Lubrication Type | Hole On Outer Ring | ||
| Material | 52100 Bearing Quality Steel | ||
| Operating Temperature (Max) ºC | 148.9 | ||
| Operating Temperature (Max) ºF | 300 | ||
| Operating Temperature (Min) ºC | -40 | ||
| Operating Temperature (Min) ºF | -40 | ||
| Outside Diameter (in) | 1.75 | ||
| Outside Diameter (mm) | 44.45 | ||
| Static Load Rating (lbf) | 14200 | ||
| Static Load Rating (N) | 63164.724 | ||
| Weight (lb) | 0.23 | ||
| Bore Shape | Round | ||
| Fillet Radius/Chamfer (in) | 0.040 | ||
| Fillet Radius/Chamfer (mm) | 1.016 | ||
| Precision Rating | Not Rated | ||
| Speed (Max) (rpm) | 11000 | ||
| Total Width (in) | 1 | ||
| Total Width (mm) | 25.4 | ||
