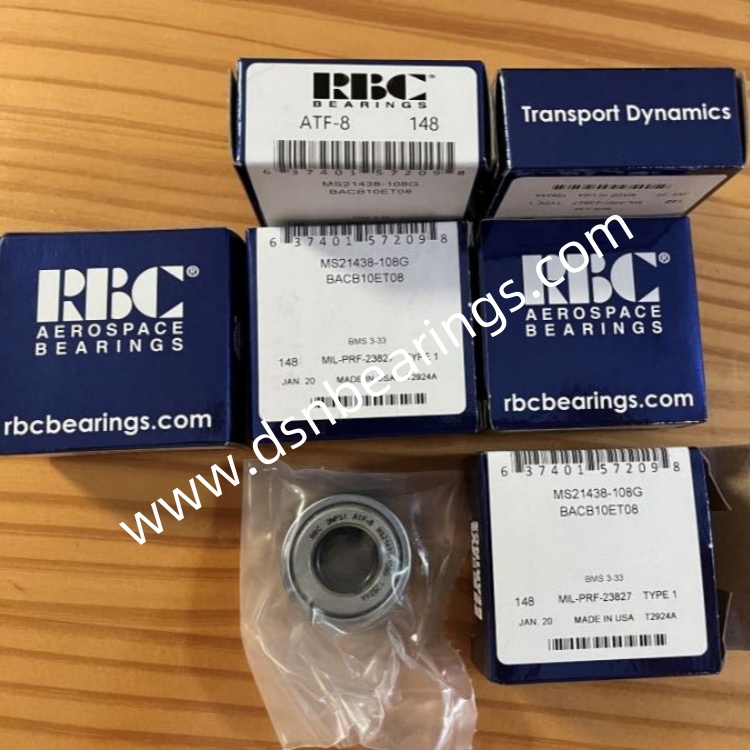

RBC ATF-8 MS21438-108G Aerospace Bearings BACB10ET08

RBC BEARINGS
3NPS1 ATF-8 MS21438-108
RBC 3NPS1 ATF-8 MS21438-108 ;  Bearings/roller bearings
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: Contact with Sales
Packaging Details: SINGLE BOX PACKING - CARTON BOX PACKING - PALLETS
Delivery Time: 5-7 Days After payment
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 100000pcs/month

Product Description


Product Name     RBC Airframe Bearing - ATF Series / SAE AS21438
Description     ATF8 - RBC Airframe Bearing - ATF Series - 0.5000" Bore x 1.3125" OD x 0.625" Width
Type     Sealed Airframe Track Roller Bearing, Single Row with Internal Thrust Washers and Crowned O.D.
Style     Needle Roller
Inch/Metric     Inch
Inner Diameter     0.5"
Outer Diameter     1.3125"
Width     0.625"
Dynamic Capacity     4300 lbf
Static Capacity     5780 lbf
Max Allowable Load     5780 lbf
Track Capacity     4300 lbf
Finish     Cadmium
Enclosure     Double Sealed
Cage Material     Steel
Series     RBC®
Seal Type     Sealed
Bore Size (in)     0.50
Bore Size (mm)     12.70
Dynamic Load Rating (lbf)     5780
Dynamic Load Rating (N)     25710.7116
Industry Standards/Certifications     SAE AS21438
Item Name     RBC Airframe Bearing - ATF Series / SAE AS21438
Lubrication Type     Lubrication Groove & Hole
Material     High carbon chrome steel
Outside Diameter (in)     1.31
Outside Diameter (mm)     33.34
Seal Material     Sealed
Static Load Rating (lbf)     5780
Static Load Rating (N)     25710.7116
Weight (lb)     0.19
Bore Shape     Round
Fillet Radius/Chamfer (in)     0.032
Fillet Radius/Chamfer (mm)     0.8128
Precision Rating     Not Rated
Speed (Max) (rpm)     100
Total Width (in)     0.6250
Total Width (mm)     15.875
Weight (kg)     0.08626

Suzhou DSN Bearings Limited Advantages:

Suzhou DSN Bearings Limited. We have deal with the bearing import and export business more than 20 years.

The company sells NHBB bearings,KAYDON bearings,RBC bearings,INA bearings,MCGILL bearings,RBC bearings,NTN bearings,IKO bearings,KOYO bearings,SFERAX bearings,NMB bearings,NACHI bearings,BARDEN bearings,WINKEL bearings,C-FLEX bearings and other Europe and the United States High precision bearing products.

The main brands are as follows:German brands: MYONIC, GMN, GRW, FAG INA STIEBER NADELLA BARDEN STAR,American brand: NHBB KAYDON RBC MCGILL MRC C-FLEX BARDENJapanese brand: NSK NTN NACHI IJK NMB EZO IKO THK ASAHI KOYO FYHEuropean brand: SKF SNFA RHP SNR ADR RBF ZKL NKE WIB COOPER SFERAX and so on.




FAQs

A: We promise to bear the following responsibilities when defective products were found:

  • 1. 12 months warranty from the first day of receiving goods;
  • 2. Replacements would be sent with goods of your next order;
  • 3. Refund for defective products if customers require.

A: Yes, we provide ODM&OEM services to worldwide customers, we also customize OEM box and packing as your requirements.

A: MOQ is 10pcs for standardized products; for customized products, MOQ should be negotiated in advance. There is no MOQ for sample orders.

A: The lead time for sample orders is 3-5 days, for bulk orders is 5-15 days.

A: Yes we offer free samples to distributors and wholesalers, however customers should bear freight. We DO NOT offer free samples to end users.

A:

  • 1. Email us the model, brand and quantity,shipping way of bearings and we will quote our best price for you;
  • 2. Proforma Invoice made and sent to you as the price agreed by both parts;
  • 3. Deposit Payment after confirming the PI and we arrange production;
  • 4. Balance paid before shipment or after copy of Bill of Loading.
