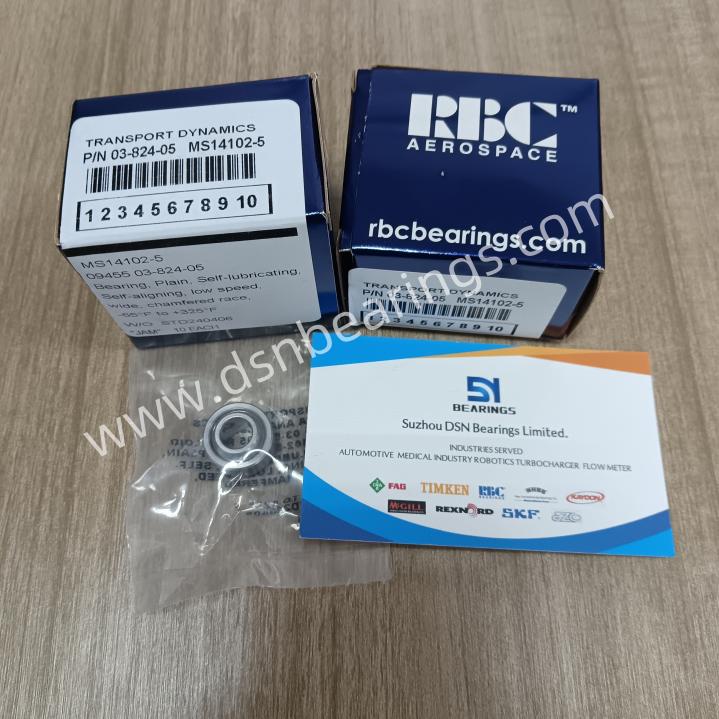

RBC Aerospace Bearings MS14102-5 / 03-824-05
| Product Name | RBC Airframe Spherical Bearing - Self-Lubricated | ||
| Description | 0382405 - RBC Airframe Spherical Bearing - Self-Lubricated - 0.3125" Bore x 0.6875" OD x 0.4370" Width | ||
| Type | Spherical, Self Lubricating, Wide, Chamfered | ||
| Style | Self Lubricating, Wide, Chamfered | ||
Payment & Shipping Terms
| Minimum Order Quantity: | 1 pcs |
| Price: | Contact with Sales |
| Packaging Details: | SINGLE BOX PACKING - CARTON BOX PACKING - PALLETS |
| Delivery Time: | 5-7 Days After payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 100000pcs/month |
Product Description
| Product Name | RBC Airframe Spherical Bearing - Self-Lubricated | ||
| Description | 0382405 - RBC Airframe Spherical Bearing - Self-Lubricated - 0.3125" Bore x 0.6875" OD x 0.4370" Width | ||
| Type | Spherical, Self Lubricating, Wide, Chamfered | ||
| Style | Self Lubricating, Wide, Chamfered | ||
| Inch/Metric | Inch | ||
| Inner Diameter | 0.3125" | ||
| Outer Diameter | 0.6875" | ||
| Width | 0.437" | ||
| Static Capacity | 9400 lbf | ||
| Static Thrust Capacity | 1640 lbf | ||
| Inner Ring Width | 0.437" | ||
| Outer Ring Width | 0.317" | ||
| Tilt Angle | 14º | ||
| Bearing Material | 440C Stainless Steel | ||
| Operating Temperature | -65 to 325 ºF | ||
| Enclosure | Open | ||
| Housing Material | 17-4 Stainless Steel | ||
| Race Material | PTFE | ||
| Series | Fibriloid® | ||
| Axial Static Load Rating (kN) | 7.35 | ||
| Axial Static Load Rating (lbf) | 1640 | ||
| Axial Static Load Rating (N) | 7350 | ||
| Bore Size (in) | 0.31 | ||
| Bore Size (mm) | 7.94 | ||
| Dynamic Load Rating (kN) | 27 | ||
| Dynamic Load Rating (lbf) | 6050 | ||
| Dynamic Load Rating (N) | 27000 | ||
| Industry Standards/Certifications | SAE-AS81820, MS14101, MS14117 | ||
| Inside Ring Width (in) | 0.437 | ||
| Inside Ring Width (mm) | 11.1 | ||
| Item Name | RBC Airframe Spherical Bearing - Self-Lubricated | ||
| Length (in) | 0.437 | ||
| Liner Material | PTFE | ||
| Lubrication Type | Self Lubricating | ||
| Material | Stainless Steel | ||
| Max PV (psi X fpm) Dry | 50000 | ||
| Misalignment Angle º | 14 | ||
| Operating Temperature (Max) ºC | 162.8 | ||
| Operating Temperature (Max) ºF | 325 | ||
| Operating Temperature (Min) ºC | -53.9 | ||
| Operating Temperature (Min) ºF | -65 | ||
| Outside Diameter (in) | 0.69 | ||
| Outside Diameter (mm) | 17.46 | ||
| Outside Ring Material | CRES 17-4PH, AMS 5643, HRC 28 min. | ||
| Outside Ring Width (in) | 0.317 | ||
| Outside Ring Width (mm) | 8.05 | ||
| Performance | Clevis Applications, Pivot Points | ||
| Seal Material | None | ||
| Shaft Size (in) | 0.3125 | ||
| Static Load Rating (kN) | 41.8 | ||
| Static Load Rating (lbf) | 9400 | ||
| Static Load Rating (N) | 41800 | ||
| Weight (lb) | 0.031 | ||
| UPC | 637400371456 | ||
