BRTF 16-00-502 Heavy duty rod ends with integral self-aligning roller bearing
BRTF 16 - 00 - 502
DURBAL heavy-duty rod ends with integral self-aligning roller bearing, series K, female thread, according to DIN ISO 12240-4 and DIN ISO 8139, cage design
Right hand thread: BRTF_-00-501 and left hand thread: BRTF_-00-502
- Housing: forged steel, case hardened bearing race, superfinished, surface galvanized, free of Cr VI
- Inner ring: ball bearing steel, hardened, superfinished
- Rolling element: ball bearing steel, hardened, superfinished
- Maintenance: low maintenance, lubrication possible, aluminium-complex-soap-grease, approval according to USDA H1
- Grease nipple: DIN 3405 D1/A (until size 10) / DIN 71 412 H1 (from size 12), further grease nipples see on this page
- Temperature range: -45° C to +120° C
Payment & Shipping Terms
| Minimum Order Quantity: | 1 pcs |
| Price: | Contact with Sales |
| Packaging Details: | SINGLE BOX PACKING - CARTON BOX PACKING - PALLETS |
| Delivery Time: | 5-7 Days After payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 100000pcs/month |
Product Description

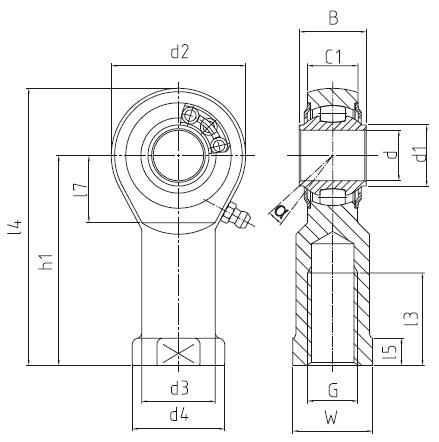

| left hand thread | BRTF 16 - 00 -502 |
|---|---|
| d (mm) | 16 |
| G | M 16 |
| d2 (mm) | 42 |
| l4 (mm) | 85 |
| B (mm) | 21 |
| C1 (mm) | 15 |
| d1 (mm) | 19 |
| d3 (mm) | 22 |
| d4 (mm) | 27 |
| h1 (mm) | 64 |
| l3 (mm) | 28 |
| l5 (mm) | 8 |
| l7 (mm) | 22 |
| W (mm) | 22 |
| tilt angle alpha (°) | 7 |
| basic load rating dyn C (kN) | 13.3 |
| basic load rating stat Co (kN) | 8.9 |
| radial clearance CN (µm) | 10 - 30 |
| rotational speed limit n max. (min-1) | 975 |
| weight (kg) | 0.22 |
