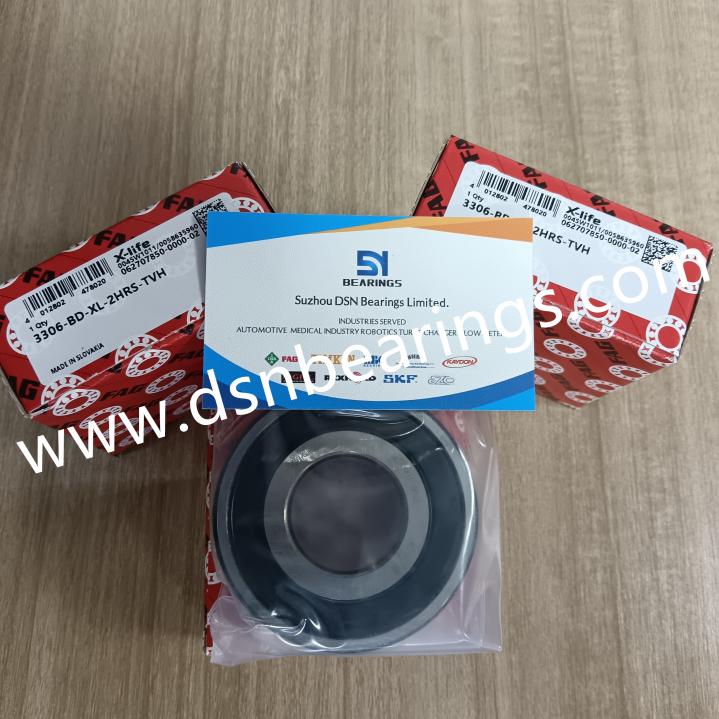

FAG bearings 3306-BD-XL-2HRS-TVH
Payment & Shipping Terms
| Minimum Order Quantity: | 1 pcs |
| Price: | Contact with Sales |
| Packaging Details: | SINGLE BOX PACKING - CARTON BOX PACKING - PALLETS |
| Delivery Time: | 5-7 Days After payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 100000pcs/month |
Product Description
| d | 30 mm | Bore diameter |
| D | 72 mm | Outside diameter |
| B | 30,2 mm | Width |
| Cr | 43.000 N | Basic dynamic load rating, radial |
| C0r | 29.500 N | Basic static load rating, radial |
| Cur | 2.050 N | Fatigue load limit, radial |
| nG | 7.800 1/min | Limiting speed |
| ≈m | 0,55 kg | Weight |
Mounting dimensions
| da min | 37 mm | Minimum diameter shaft shoulder |
| Da max | 65 mm | Maximum diameter of housing shoulder |
| ra max | 1 mm | Maximum fillet radius |
Dimensions
| rmin | 1,1 mm | Minimum chamfer dimension |
| D1 | 60,47 mm | Shoulder diameter outer ring |
| D2 | 63,46 mm | Caliber diameter outer ring |
| d1 | 46,25 mm | Shoulder diameter inner ring |
| d2 | 44,35 mm | Caliber diamter inner ring |
| a | 41,9 mm | Distance between the apexes of the pressure cones |
| α | 30 ° | Contact angle |
Temperature range
| Tmin | -20 °C | Operating temperature min. |
| Tmax | 100 °C | Operating temperature max. |
Suzhou DSN Bearings Limited Advantages:
Suzhou DSN Bearings Limited. We have deal with the bearing import and export business more than 20 years.
The company sells NHBB bearings,KAYDON bearings,RBC bearings,INA bearings,MCGILL bearings,RBC bearings,NTN bearings,IKO bearings,KOYO bearings,SFERAX bearings,NMB bearings,NACHI bearings,BARDEN bearings,WINKEL bearings,C-FLEX bearings and other Europe and the United States High precision bearing products.
The main brands are as follows:German brands: MYONIC, GMN, GRW, FAG INA STIEBER NADELLA BARDEN STAR,American brand: NHBB KAYDON RBC MCGILL MRC C-FLEX BARDENJapanese brand: NSK NTN NACHI IJK NMB EZO IKO THK ASAHI KOYO FYHEuropean brand: SKF SNFA RHP SNR ADR RBF ZKL NKE WIB COOPER SFERAX and so on.
MORE CHOICES:
FAQs
A: We promise to bear the following responsibilities when defective products were found:
- 1. 12 months warranty from the first day of receiving goods;
- 2. Replacements would be sent with goods of your next order;
- 3. Refund for defective products if customers require.
A: Yes, we provide ODM&OEM services to worldwide customers, we also customize OEM box and packing as your requirements.
A: MOQ is 10pcs for standardized products; for customized products, MOQ should be negotiated in advance. There is no MOQ for sample orders.
A: The lead time for sample orders is 3-5 days, for bulk orders is 5-15 days.
A: Yes we offer free samples to distributors and wholesalers, however customers should bear freight. We DO NOT offer free samples to end users.
A:
- 1. Email us the model, brand and quantity,shipping way of bearings and we will quote our best price for you;
- 2. Proforma Invoice made and sent to you as the price agreed by both parts;
- 3. Deposit Payment after confirming the PI and we arrange production;
- 4. Balance paid before shipment or after copy of Bill of Loading.
