BEF 20-20-501, BEF Series Heavy Duty Metric Rod Ends Durbal bearing
DURBAL heavy-duty rod ends with integral spherical plain bearing, series K, female thread, according to DIN ISO 12240-4 and DIN ISO 8139
Right hand thread: BEF_-20-501 and left hand thread: BEF_-20-502
Housing: forged steel, tempered, surface galvanized, free of Cr VI
Race DURBAL-Glide: Polyamid-PTFE-fibreglass-Compound
Joint ball: ball bearing steel, hardened, ground, polished and hard chromium plated
Maintenance: maintenance-free
Temperature range: -30° C to +60° C
Payment & Shipping Terms
| Minimum Order Quantity: | 1 pcs |
| Price: | Contact with Sales |
| Packaging Details: | SINGLE BOX PACKING - CARTON BOX PACKING - PALLETS |
| Delivery Time: | 5-7 Days After payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 100000pcs/month |
Product Description

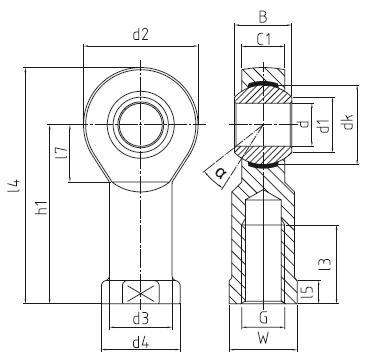

| right hand thread | BEF 20 - 20 -501 |
|---|---|
| d (mm) | 20 |
| G | M 20 x 1,5 |
| d2 (mm) | 50 |
| l4 (mm) | 102 |
| B (mm) | 25 |
| C1 (mm) | 18 |
| d1 (mm) | 24.3 |
| d3 (mm) | 27.5 |
| d4 (mm) | 34 |
| dk (mm) | 34.87 |
| h1 (mm) | 77 |
| l3 (mm) | 33 |
| l5 (mm) | 10 |
| l7 (mm) | 26 |
| W (mm) | 30 |
| tilt angle alpha (°) | 14.5 |
| basic load rating dyn C (kN) | 30.8 |
| basic load rating stat Co (kN) | 82.2 |
| radial clearance CN (µm) | 0 - 10 |
| weight (kg) | 0.386 |
Suzhou DSN Bearings Limited Advantages:
Suzhou DSN Bearings Limited. We have deal with the bearing import and export business more than 20 years.
The company sells NHBB bearings,KAYDON bearings,RBC bearings,INA bearings,MCGILL bearings,RBC bearings,NTN bearings,IKO bearings,KOYO bearings,SFERAX bearings,NMB bearings,NACHI bearings,BARDEN bearings,WINKEL bearings,C-FLEX bearings and other Europe and the United States High precision bearing products.
The main brands are as follows:German brands: MYONIC, GMN, GRW, FAG INA STIEBER NADELLA BARDEN STAR,American brand: NHBB KAYDON RBC MCGILL MRC C-FLEX BARDENJapanese brand: NSK NTN NACHI IJK NMB EZO IKO THK ASAHI KOYO FYHEuropean brand: SKF SNFA RHP SNR ADR RBF ZKL NKE WIB COOPER SFERAX and so on.
