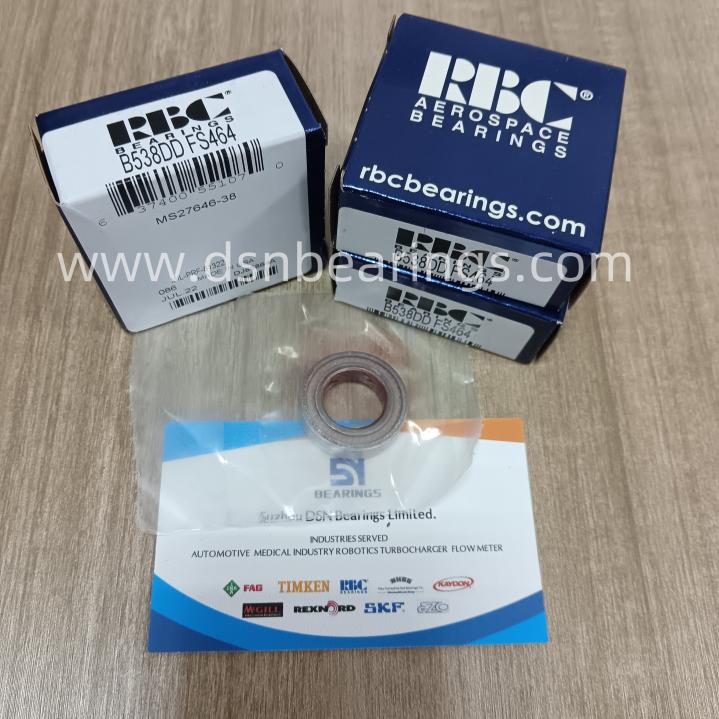

B538DDFS464 RBC Airframe Bearings MS27646-38
| Product Name | RBC Airframe Bearing - B500 Series | ||
| Description | B538DDFS464 - RBC Airframe Bearing - B500 Series - 0.625" Bore, 1.0625" OD, 0.281" Width | ||
| Type | Torque Tube, Extra Light Duty Single Row Ball Bearing, Sealed, Cadmium Plated | ||
| Style2 | Ball Bearing | ||
Payment & Shipping Terms
| Minimum Order Quantity: | 1 pcs |
| Price: | Contact with Sales |
| Packaging Details: | SINGLE BOX PACKING - CARTON BOX PACKING - PALLETS |
| Delivery Time: | 5-7 Days After payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 100000pcs/month |
Product Description
| Product Name | RBC Airframe Bearing - B500 Series | ||
| Description | B538DDFS464 - RBC Airframe Bearing - B500 Series - 0.625" Bore, 1.0625" OD, 0.281" Width | ||
| Type | Torque Tube, Extra Light Duty Single Row Ball Bearing, Sealed, Cadmium Plated | ||
| Style2 | Ball Bearing | ||
| Inch/Metric | Inch | ||
| Inner Diameter | 0.625" | ||
| Outer Diameter | 1.0625" | ||
| Width | 0.281" | ||
| Dynamic Capacity | 3280 lbf | ||
| Inner Ring Width | 0.281" | ||
| Outer Ring Width | 0.25" | ||
| Bearing Material | 52100 Bearing Quality Steel | ||
| Ring Material | 52100 Bearing Quality Steel | ||
| Finish | Cadmium | ||
| Enclosure | Double Sealed | ||
| Cage Material | No Cage | ||
| Fillet Radius | 0.015" | ||
| Series | RBC® | ||
| Seal Type | Sealed | ||
| Bore Size (in) | 0.63 | ||
| Bore Size (mm) | 15.88 | ||
| Dynamic Load Rating (lbf) | 3280 | ||
| Dynamic Load Rating (N) | 14600 | ||
| Industry Standards/Certifications | SAE-AS27646 | ||
| Inside Ring Width (in) | 0.281 | ||
| Inside Ring Width (mm) | 7.14 | ||
| Item Name | RBC Airframe Bearing - B500 Series | ||
| Material | 52100 Bearing Quality Steel | ||
| Outside Diameter (in) | 1.06 | ||
| Outside Diameter (mm) | 26.99 | ||
| Outside Ring Width (in) | 0.25 | ||
| Outside Ring Width (mm) | 6.35 | ||
| Static Load Rating (lbf) | 3280 | ||
| Static Load Rating (N) | 14600 | ||
| Weight (lb) | 0.03 | ||
| Bore Shape | Round | ||
| Speed (Max) (rpm) | 500 | ||
| Total Width (in) | 0.281 | ||
| Total Width (mm) | 7.14 | ||
| Weight (kg) | 0.014 | ||
| Clearance | C0 | ||
| Filling Slot | Single Row Non-Fill Slot | ||
| Include Snap Ring | No | ||
| Outside Ring Shape | Straight | ||
| UPC | 637400551070 | ||
| Industry Focus | Airframe Control | ||
